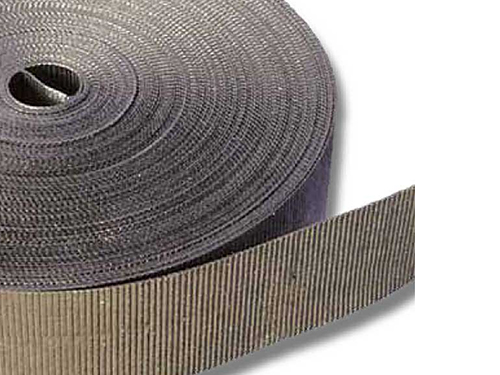

Corrugated Graphite Tape

Description:

Corrugated graphite tape is made from expanded graphite roll, self-adhesive backing is available.

Corrugated graphite tape is made from plain flexible graphite tape which rolled by special corrugated mold. Corrugated graphite tape is widely used for pump and valves. it is easily installed for small diameter valves. Corrugated graphite tape with adhesive backed is used for flange sealing as gasket, especially for large diameter flanges.

Technical Parameters:

• Carbon> 99.0%, Sulfur <1200PPM
• Working temperature: -200°C to +550°C (air)
• Working temperature: -200°C to +650°C (steam)
• Working pressure: 140bar
• Thickness from 0.4mm to 1.0mm
