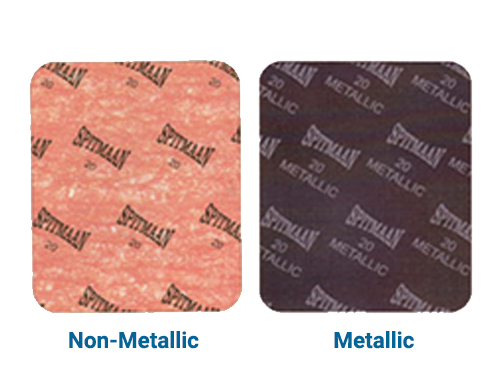

Style-20 (Water Purpose)
Description:
Compressed Asbestos Fibre Jointing is a consistently uniform and resilient product. A price worthy quality of dependable performance, plus adaptability to many sealing requirements makes this ‘STEAM’ jointing the choice sheet packing or of Plant Engineers and maintenance men.
Services:
Style 20 Jointing’s are developed for general purpose applications and this quality is applicable to a wide range of duties with less severe working conditions of temperature and pressure.
Specification Data
| Technical Data | |
|---|---|
| Recommended Maximum Temperature | 380°C. |
| Recommended Maximum Pressure | 35 kg/sq.cm. |
| Specification Compliance | IS 2712 – 1998 Grade W/3 |
| IS 2712 – 1971 Grade C. | |

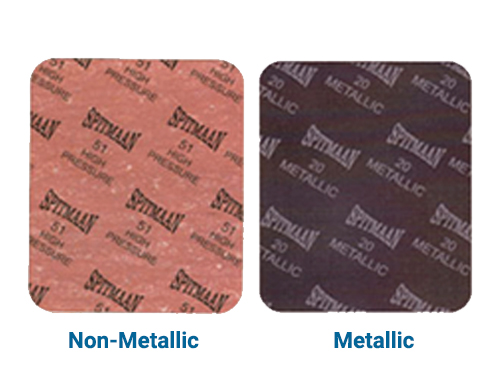

Style-51 (High Pressure)
Description:
Manufactured from selected Asbestos Fibre and bonded with high grade binder compound, this product has a wide range of applications in the industrial field. Brown / Grey or Graphited finish.
Services:
Recommended against steam, neutral non-flammable gases, dyes alkalis, fats, oils, alcohols, motor fuels and such other engineering services, which do not warrant the use of as High Grade material such as Style 54 super.
| Parameter | Specification |
|---|---|
| Technical Data | |
| Recommended Maximum Temperature | 440°C. |
| Recommended Maximum Pressure | 80 kg/cm2. |
| Specification Compliance | IS 2712 – 1998 IS 2712 – 1979 Grade W/2 IS 2712 – 1971 Grade B/S BS 2815 – 1973 Grade B |

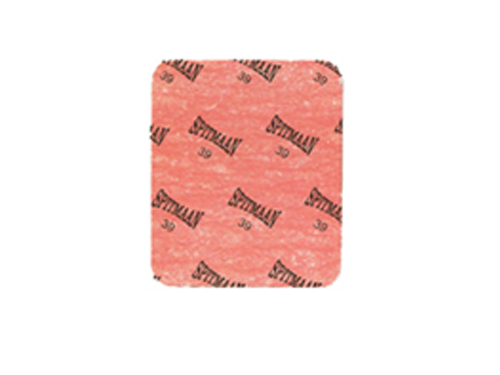

Style-39
Description:
Manufactured from quality of Asbestos Fibre and vulcanized with special rubber compound to meet with the exacting requirements of modern industry.
Services:
Recommended for use against dry and wet steam, water, gases, alkalis, oil at normal temperatures, chemicals fuels, etc. and general engineering. Style 39 can also be provided with wire gauze insertion and graphited finish.
| Parameter | Specification |
|---|---|
| Technical Data | |
| Recommended Maximum Temperature | 440°C. |
| Recommended Maximum Pressure | 80 kg/cm2. |
| Specification Compliance | IS 2712 – 1998 IS 2712 – 1979 Grade O/2 IS 2712 – 1979 Grade W/2 IS 2712 – 1971 Grade B/S BS 2815 – 1973 Grade B |

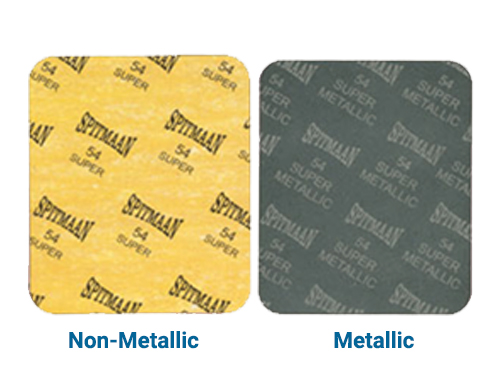

Style-54 Super (High Steam Pressure For Boilers)
Description:
Manufactured from excellent quality of Chrysotile Asbestos Fibre and raw materials, the blend being intimately mixed with heat resisting rubber compounds under special process to ensure maximum stability against high pressure and temperatures.
Services:
Though primarily a super-heated steam jointing it is also recommended against saturated steam, oxygen, petroleum distillates, oils and fats, fuels, internal combustion engines, hydrocarbons, alcohols, solvent, dyes, etc.
| Technical Data | |
|---|---|
| Recommended Maximum Temperature | 550°C. |
| Recommended Maximum Pressure | 150 kg/cm2. |
| Specification Compliance | IS 2712 – 1998 |
| IS 2712 – 1979 Grade W/1 IS 2712 – 1971 Grade A/S IBS 2815 – 1973 Grade A |
|

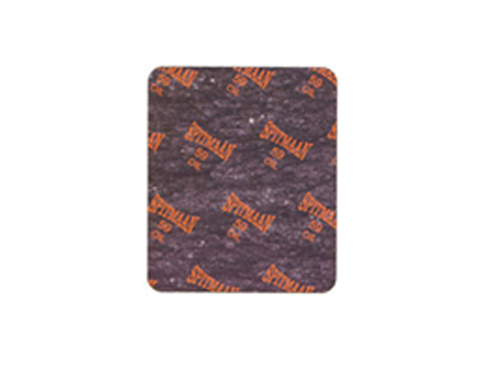

Style-59 (Oil Service)
Description:
A compressed fibre jointing bonded with a sophisticated compound. This is specialised jointing to withstand the most exacting demands of oil and petrochemicals plants, solvents, refrigerators, oils, etc.
Services:
Used in pipelines and apparatus of petrochemical fields, petroleum distillates, oil and petroleum industries. It is also recommended in industrial processes with high contents of aromatic substances, sulphurous compounds, chloric hydrocarbons, phenols, refrigerants, etc.
| Technical Data | |
|---|---|
| Recommended Maximum Temperature | 550°C. |
| Recommended Maximum Pressure | 150 kg/cm2. |
| Specification Compliance | IS 2712 – 1998 Grade IS 2712 – 1979 Grade O/1 IS 2712 – 1971 Grade A/O British BS 1832 – 1972 |

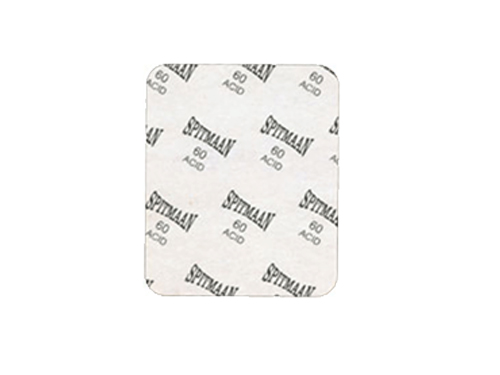

Style-60 (Acid Service)
Description:
This is a specialised asbestos fibre jointing sheet which is intimately bonded with an acid resisting compound to withstand the corrosive action of acids and chemicals.
Services:
Recommended for use against hot concentrated organic, inorganic and mineral acids including hydrochloric, sulphuric and nitric acids, under service conditions of temperature and pressure commonly encountered in chemical industries.
| Technical Data | |
|---|---|
| Recommended Maximum Temperature | 210°C. |
| Recommended Maximum Pressure | 150 kg/cm2. |
| Specification Compliance | IS 2712 – 1998 Grade IS 2712 – 1979 Grade A/1 |
