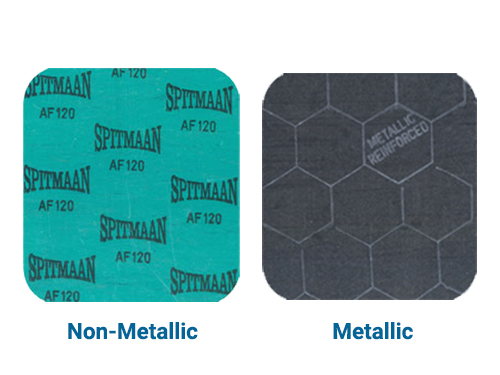

A compressed synthetic Aramid fibre jointing sheet bonded with elastomers to create a matrix of stability Suitable for light industrial applications Media Water, Gases Medium Pressure Steam, Dilute Acids/ Alkalis
Suitable for use with gases, water, low pressure steam and dilute acids and alkalis. Available with wire gauze insertion. Also available with anti-stick coating or graphite coating.
Identity Colour : Green
| Technical Data | |
|---|---|
| Temperature Rating | |
| Max. Short Term Service Temperature | 400°C |
| Max. Continuous Service Temperature | 250°C |
| Max. Operating Temperature for Steam | 180°C |
| Max. Operating Pressure in Bar | 50 bars |

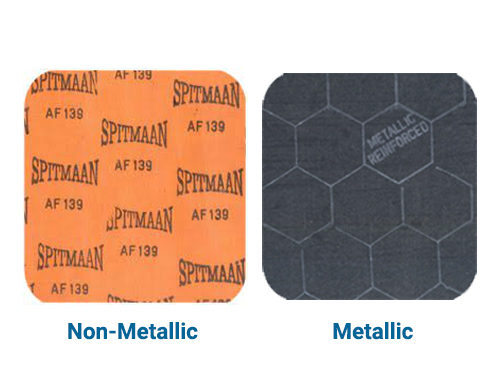

A high quality jointing’s sheet based on synthetic aramid fibres bonded with NBR elastomer Suitable for use in application involving hydrocarbons such as oils and solvents, steam, gases, glycols and aqueous solutions
General purpose for oils, solvents, water, steam, gases, dilute acids and alkalis, glycols and aqueous solution. Available with wire gauze insertion. Also available with anti-stick coating or graphite coating.
Identity Colour: Orange
| Technical Data | |
|---|---|
| Temperature Rating | |
| Max. Short Term Service Temperature | 400°C |
| Max. Continuous Service Temperature | 250°C |
| Max. Operating Temperature for Steam | 200°C |
| Max. Operating Pressure in Bar | 80 bars |

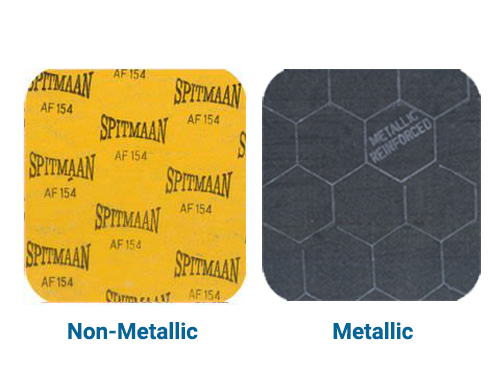

A superior performance compressed jointing sheet incorporating a blend of special heat resisting incorporating aramid fibres with high quality nitrile elastomer binder Suitable for use with oils, solvents, gases, steam dilute acids and alkalis
For use with oils, solvents, gases, steam, acid and alkalis. Excellent tensile strength. Outstanding gas saleability. High resistance to creep under elevated temperatures & pressure. Available with wire gauze insertion.
Identity Colour: Yellow
| Technical Data | |
| Temperature Rating | |
| Max. Short Term Service Temperature | 450°C |
| Max. Continuous Service Temperature | 250°C |
| Max. Operating Temperature for Steam | 250°C |
| Max. Operating Pressure in Bar | 150 bars |

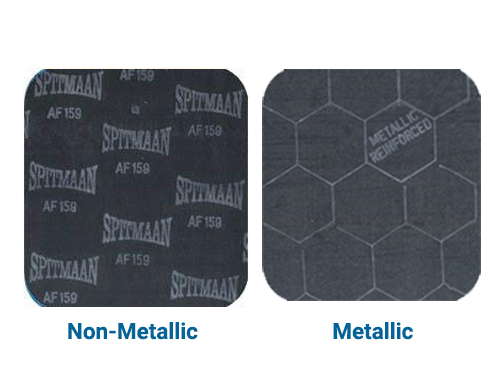

A premium grade jointing’s sheet based on special synthetic aramid fibres bonded with nitrile elastomers a universal grade suitable for many industrial sealing application. Media Hot oils fuels hydrocarbons and refrigerants.
High resistance to hot oils, fuels, hydrocarbons and refrigerants. Good steam resistance. Excellent creep resistance. Very low gas permeability. Available with wire gauze insertion.
Identity Colour: Grey
| Technical Data | |
| Temperature Rating | |
| Max. Short Term Service Temperature | 450°C |
| Max. Continuous Service Temperature | 250°C |
| Max. Operating Temperature for Steam | 200°C |
| Max. Operating Pressure in Bar | 150 bars |

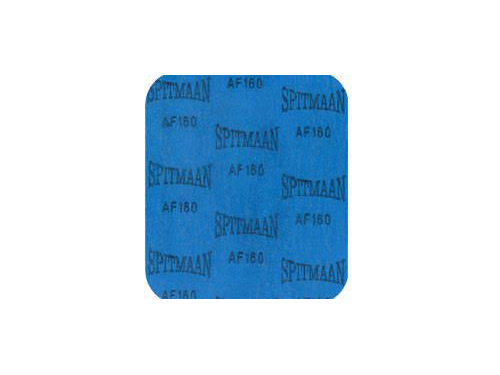

A top quality acid resistant compressed synthetic aramid fibre jointing sheet bonded with special binders a Suitable for Acid resistant grade Recommended for use against hot concentrated organic inorganic minerals acids
High resistance to hot oils, fuels, hydrocarbons and refrigerants. Good steam resistance. Excellent creep resistance. Very low gas permeability. Available with wire gauze insertion.
Identity Colour: Blue
| Technical Data | |
|---|---|
| Temperature Rating | |
| Max. Short Term Service Temperature | 250°C |
| Max. Continuous Service Temperature | 210°C |
| Max. Operating Temperature for Steam | 210°C |
| Max. Operating Pressure in Bar | 150 bars |
These Jointing’s are manufactured from Special Heat Resistant Fibres, Fillers and Graphite bonded with High Quality of NBR Elastomers which; demonstrate Excellent Thermal and Mechanical Properties.
Excellent resistance to Oils, Solvents, Fuels, Refrigerants, Salt Solutions, Gases, Water and Steam.
Identity Colour: Black Finish.
| Techical Data | ||
|---|---|---|
| Temperature Rating | Non- Metallic | Metallic |
| Short Term Temperature | 600 ºC | 650 ºC |
| Continuous Service Temperature | 450 ºC | 550 ºC |
| Max. Continous Temperature with steam | 425 ºC | 525 ºC |
| Pressure | 150 bar | 170 bar |
